About the PedigreeOnLine

PedigreeOnLine is a free web service for users to draw pedigree quickly and easily. Users can choose to create a pedigree from a family data input, or to draw or edit a pedigree in a user-friendly graphical interface. PedigreeOnLine is written in Jscript, and can work with most web browsers supporting HTML5. PedigreeOnLine currently accepts input data in three formats: Pedigree-Like-Layout(PLL) format, standard linkage format, and Comma-Separated-Values(CSV) format.

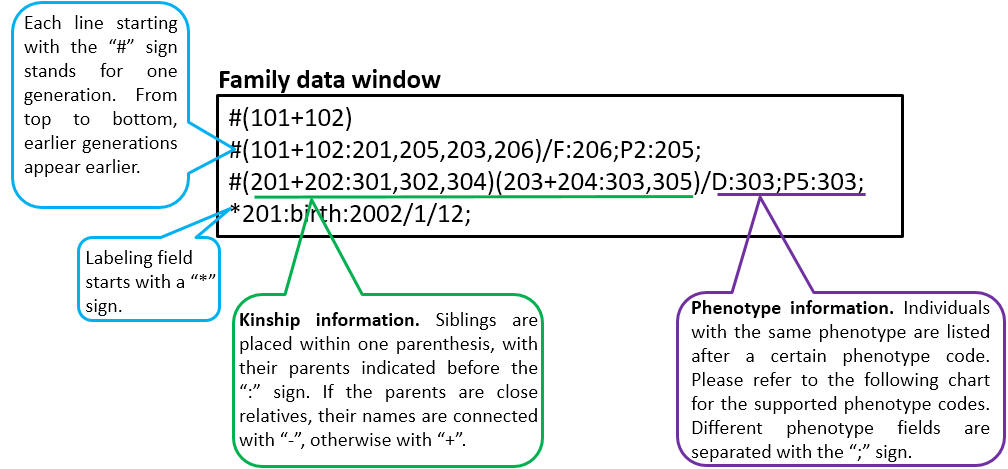

The Pedigree-Like-Layout(PLL) format

In PedigreeOnLine, we have introduced a novel family data format named Pedigree-Like-Layout(PLL) format, in which individual informations are arranged in a pedigree like layout. Use the following example for illustration:

Users can easily import and transform their CSV or Linkage files to our new data format.

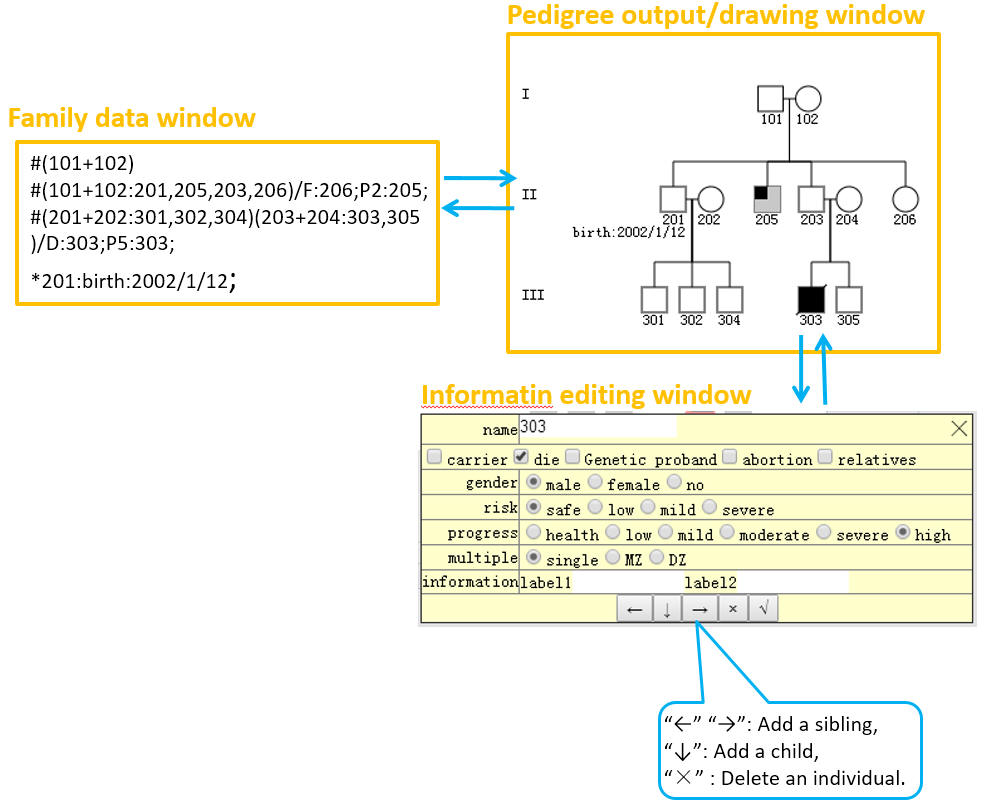

The two-way interactive mode

In PedigreeOnLine, users can generate a pedigree from the family data input. The output pedigree is also a graphical interface where users can edit or draw the pedigree. When drawing the pedigree in the graphic interface, the family data information update automatically.

Symbols / phenotype codes supported by current version

symbol	code	phenotype	symbol	code	phenotype
	*	information		R1	risk	low
	*	information		R2		moderate
		male		R3		high
	F	female		P1	process	low
	X	sex unknown		P2		mild
		healthy		P3		moderate
	C	carrier		P4		severe
	D	deceased		P5		high
	A	abortion		G	Genetic probands
	SS	monozygotic multifetation		M+F	spouses	normal
	SN	polyovulatory multifetation		M-F	spouses	close relatives
